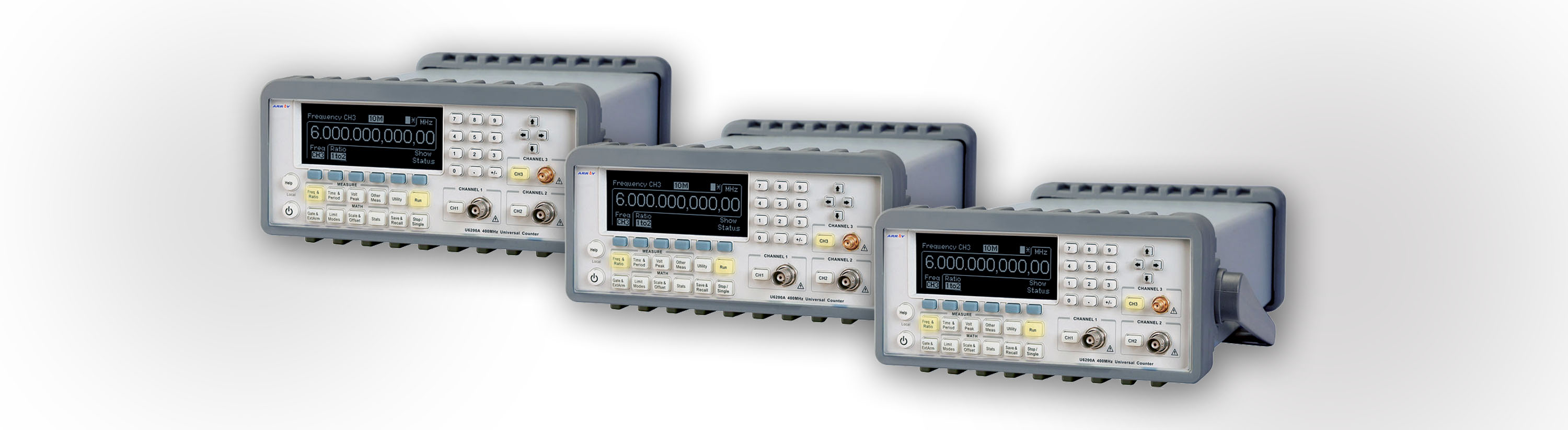

Introduction： The ARRAY U6200A universal counter, whose production procedures conform to ISO 9001, has frequency resolution of 12 digits per second (Figure-1), 40 ps time interval resolution and a complete set of test and analysis features. The standard U6200A’s CH3 comes with the range from 375 MHz to 6GHz and the standard CH1 & 2 from 1 mHz to 400 MHz.     Features： Channel 3 provides 375MHz~6GHz Frequency range Channel 1 & 2 provide 1 mHz~400MHz Frequency range 12 Digits resolution with 1S gate time 40 PS time domain function resolution Time domain function (Rise/Fall Time, Pulse Width, Time interval), Peak voltage, phase. Timebase reference temperature stability<1PPM Multi-parameter Display of results Easy-to-use keys with light Operation instructions on buttons Connection via USB, Ethernet 10M/100M & GPIB (Optional) Support Webserver Support a high stability oven (Optional) Provide free PC software

Resolution: 12 Digits&Frequency: 6GHz

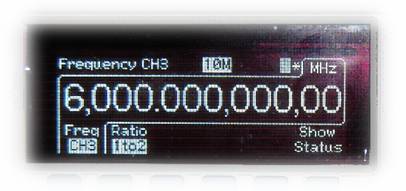

The ARRAY U6200A universal counter, whose production procedures conform to ISO 9001, has frequency resolution of 12 digits per second (Figure-1), 40 ps time interval resolution and a complete set of test and analysis features.The standard U6200A’s CH3 comes with the range from 375 MHz to 6GHz and the standard CH1 & 2 from 1 mHz to 400 MHz.

Figure-1

Great Features for Universal Purposes

The ARRAY U6200A also provides great features including Frequency & Ratio (11 Digits/Sec.), Time interval, Period (2.5 ns to 1000s), Duty Cycle, Pulse Width, Rise/Fall Time, Peak Voltage (100 Hz~300MHz), Phase, Totalize, Temperature Stability (<1 PPM), Aging Rate (<2 PPM per year), timebase reference channel (Figure-2) and complete Front-End Isolation.Moreover, it offers 20 memories (Figure-3) for storing frequently-used operations.

Figure-2 and Figure-3

Full Math Function & Easy Operation Panel

The ARRAY U6200A offers built-in statistics and math functions.Users can do general, simultaneous measurements, count in mean, min/max, delta and standard deviation (Figure-4).On the other hands, the scale & offset button can be easily used for compensation purpose according to users’ applications.In addition, to reach these measurements, user can easily use the numeric buttons to define settings.Moreover, the U6200 also provides users the visible light buttons as functions are actuated (Figure-5)

Figure-4and Figure-5

Fast Measurement & Special Appliction

The U6200A supports real-time digital signal processing technology, which is applied to analyze data as simultaneously getting new readings and speeding measurement.The “Limit Modes” is worth to be mentioned, i.e. users can set margin according to their specific measurements.Via Go-On or Stop and USB Output settings (Figure-6), the U6200A will keep or stop measuring as a limit is exceeded, and generate an output signal to trigger external devices.

Figure-6

Free Software & Familiar SCPI Commands

Via a USB or an optional GPIB interface, users can get data logs (Figure-7) by Microsoft Excel.Furthermore, U6200A supports a webserver function, so users can easily control it via a LAN interface by imputing an Ethernet address (Default: 192.168.0.247) on web browsers.In addition, by the SCPI commands compatible to Agilent 53132A, the ARRAY U6200A can provide familiar syntax string for users’ applications.For more command information, please refer to the Section 5.4 of the U6200A User’s Manual.
