Introduction£º

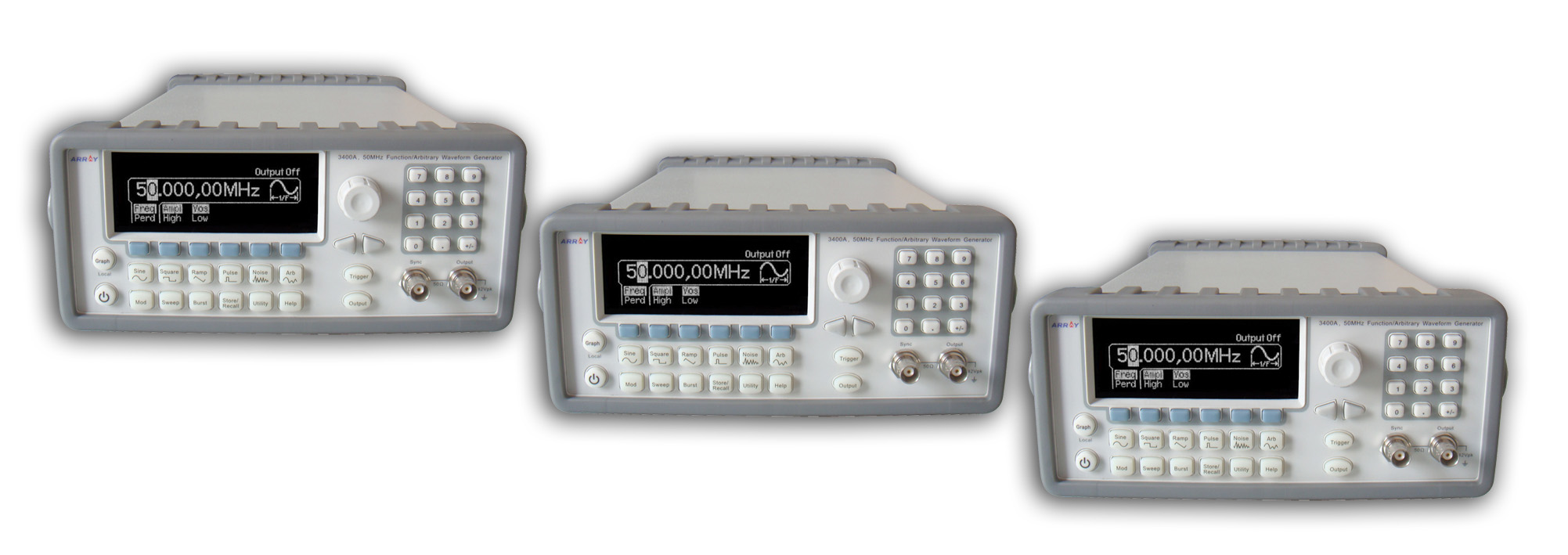

The 3400A is the high performance 50MHz Waveform Generator.It can create stable,precise,clean and low distortion sine waves by using DDS(Direct Digital Synthesis) Technology. With fast rise and fall times up to 25MHz for square waves and 200KHz for linear ramp waves.The 3400A also can generate variable-edge-time pulses up to 10MHz and generate complex custom waveforms.
Features£º
50MHz Sine, 25MHz Square & 10MHz arbitrary Waveforms¡¡
14-bit,125 Msa/s, 256K-point Arbitrary Waveform¡¡
Pulse,Ramp, Triangle, Noise & DC Waveforms
Linear & Logarithmic Sweeps & Burst Operation
AM,FM,PM,(PSK), FSK & PWM Modulation Types
Amplitude Range, 20 mVpp to 20 Vpp into Open Circuit
Renote Control via USB, LAN or Opt. GPD
Graph Mode for Visual Verification of Signal Settings
16-bit Data Output via Pattern Out
Free Waveform Editor Software Wavepatt
User Friendly Operation



Great Performance for Functions and Waveforms

3400A 50MHz Function / Arbitrary Waveform Generator can create stable, precise, clean and low distortion sine waves by using DDS (Direct Digital Synthesis) Technology. With fast rise and fall times up to 25 MHz for square waves and 200KHz for linear ramp waves , the 3400A also can reach users' demand on waveforms.

Pulse Generation

3400A can generate variable-edge-time pulses up to 10MHz. With variable period, pulse width and amplitude the 3400A is perfectly suited to applications requiring a flexible pulse signal.

Custom Waveform Generation

3400A can generate complex custom waveforms. With 14-bit resolution, and 125 MSa/s sampling rate, the 3400A offers users the flexibility to create waveforms. It also allows users to store up to 5 waveforms, 4 (4 x 256K Points) in nonvolatile memory and 1 in volatile memory.

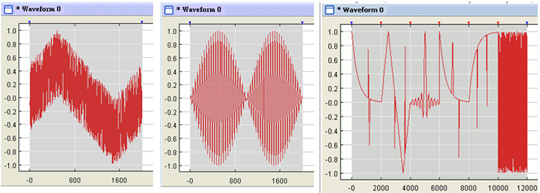

Waveform editor Wavepatt

Waveform Editor Software Wavepatt allows users to create, edit and download complex waveforms. In addition, users can retrieve waveforms from Agilent Oscilloscope MSO 8104 by using the Wavepatt.

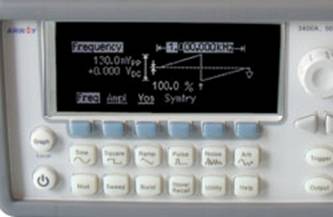

Graph mode

In graph mode, user can easily visual verify the signal settings. Also, user can always see the selected function on the upper left corner of display.

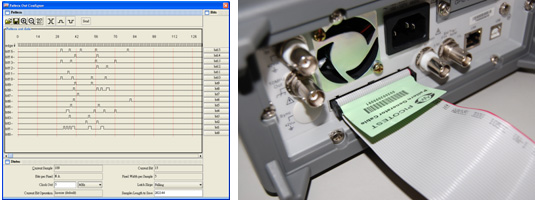

Data Transmission via Pattern Out

User can use Wavepatt? to creat and store 16-bit data in 3400A. The data can be transmited via Pattern Out from 3400A rear panel as source for control.

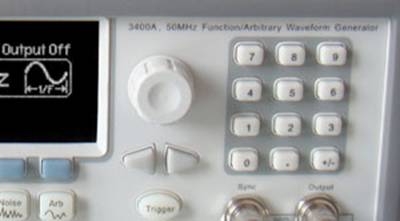

User Friendly Operation

The front-panel operation of 3400A is simple and user friendly. Users can enter all functions with a single key or two, and use knob or numeric keypad to adjust frequency, amplitude, offset and other parameters. Otherwise, users can also directly input voltage values in Vpp, Vrms, dBm or high & low levels. Timing parameters can be entered in Hertz (Hz) or second.

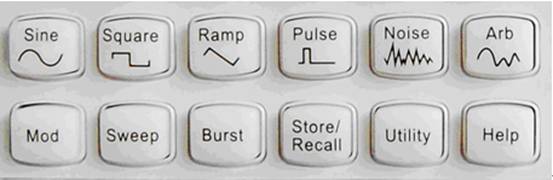

Easy-to-use Functions

Support External Frequency Output

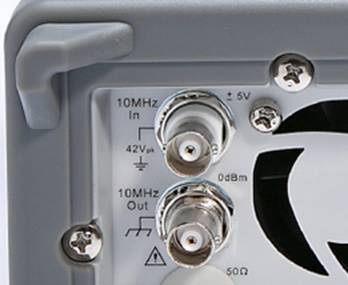

The 3400A external frequency reference allows users synchronizing to an external 10 MHz clock, to another 3400A, or any other unit which can support 10-MHz-frequency-input function.
