¡¡Location: ¡ÏRF¡ÏProduct Information¡ÏAG360


Main Features:
¡¡Adopting UHF system and 700-960MHz professional frequency with high anti-interference.
¡¡The receiver or the transmitter can be placed in the charging case to get the rechargeable batteries charged.
¡¡PLL synthesized design, with high frequency stability.
¡¡Digital pilotone & noise cancel technology, interfering voice ellimination.
¡¡Low battery LED indication or automatic power off when the battery is low to protect the battery life.
¡¡Audio input for external connecttion to audio inputs, such as CD, MP3 and so on share the
¡¡ ¡¡ music for everybody. Also digital tour guide recording can be played.
¡¡Using ordinary or rechargeable battery ¡°AA¡± and the batteries can last for more than twenty hours.
¡¡LED display for channel.
¡¡In the same location, six different groups can used this system simultaneously.
¡¡Being able to be used in one-to-one and one to multiple system, the number of the receivers can
¡¡ ¡¡ be unlimitedly expanded according to the need.
¡¡Being able to be used in simultaneous interpretation, portable camera, wireless microphone
¡¡ ¡¡ system, wireless earphone and so on situations.
Main Specifications:

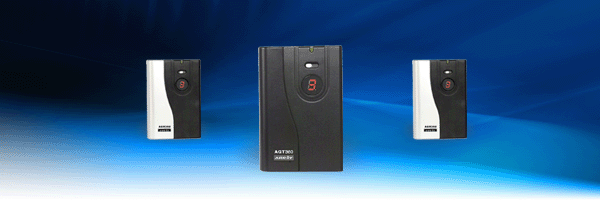

¡¡¡¡¡¡¡¡¡¡¡¡Transmitter AGT360¡¡¡¡¡¡
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ ¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡

Power Supply

2X1.5V AA
Operating Frequency
744.9MHz 746.1MHz
748.8MHz 750.7MHz
753.2MHz 754.9MHz
RF Output Power
10mW
Modulation
FM
Frequency Response
100Hz-12KHz
Dimensions
60mmX91mmX23mm
Weight
81g£¨Excluding the batteries£©

¡¡¡¡¡¡¡¡¡¡¡¡Receiver AGR360¡¡¡¡¡¡
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ ¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡

Power Supply

2X1.5V AA
Number of Channels
6
Distortion
<1%
Available Distance
>60m(In situation of non-interferance)
Battery Life
>12 hours (influenced by the volume)
Dimensions
60mmX91mmX23mm
Environmental Temperature
-20-60¡æ
Weight
83g£¨Excluding the batteries£©

¡¡¡¡¡¡¡¡¡¡Battery Charger AG360-C
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ ¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡


Charging Time of batteries fully charged
About 8 hours/ (Battery capacity of 2400mAh )
Number of charging slots
24
Dimensions 59cm¡Á38cm¡Á16cm

Main Applications£º
¡¡¡¡¡¡Widely used in touring, visiting and studying activities of the touring and training groups
¡¡¡¡¡¡Used in reception of visitants in product presentation, advanced exhibition of large companies
¡¡¡¡¡¡Used in meeting and teaching of school and so on.
¡¡¡¡¡¡Movable wireless simultaneous interpretation system
¡¡¡¡¡¡Wireless microphone
¡¡¡¡¡¡Wireless earphone
¡¡¡¡¡¡Combination of the portable video camera and wireless microphone.
¡¡¡¡¡¡Wireless monitor of the performance: especially used for the acting singer to monitor the
¡¡¡¡¡¡¡¡ accompaniment



Interpretation without
interference
Exhibition
Museum
School




Impregnable Interpretation

Crowded Square
Noisy Factory
Outside Activities

Suggested System:
¡¡ 20-Person Tour Guide System (One to multiple system)¡¡¡¡¡¡¡¡
¡¡¡¡ --Transmitter AGT360 1
  -Headset Microphone HM02 1
¡¡ -Receiver AGR360 20
  -Earphone PH01 20



-Battery Charger AG360-C 1
¡¡
Selectable Accessories:
  ¡¡¡¡¡¡¡¡¡¡
Suitcase SC02
Headset Microphone
Earphone 1 PH01
Earphone 2 PH02
Waistband WB01
¡¡¡¡¡¡¡¡
HM02
