¡ø |
SR-VP can perform the recording, broadcasting and voice prompting function. Users can broadcast the |
| |
|
sound demanded freely, with password protection so that others cannot modify it. |
| |
|
¡ø |
Dial the preset telephone number. When the conditions are met, it can perform auto-dialing to perform |
| |
auto- notification and auto-alarming. It can also control the terminal equipment by receiving the incoming |
| |
telephone signals. |
| |
|
¡ø |
This module can either record directly on SR-VP or record on PC by the recording software. On PC, users |
| |
can record voice by SR-AUD, or do other jobs such as broadcast, store voice message, record/play online, |
|
set password and print message by the software. Voices could be written into the module by communication |
| |
cable after recorded by software. |
|
|
¡ø |
Strong acoustic interference rejection and low signal consumptions |
| |
The recording wire used to recording between the PC sound card and telephone voice module |
| |
Plug and play; connect directly with PC |
| |
Applied in automatic control industrial to create intelligent controllers that are able to speak. |
| |
|
| |
 |
| |
Index |
Standard |
Automatically Receive |
CCITT-DTMF |
Automatically Dial |
CCITT-DTMF |
| ¡¡¡¡¡¡¡¡Broadcast |
Totally 100 messages (Each message is limited to 15 seconds and the total time is about 8 minutes.) |
Running Temperature |
0¡æ¡«55¡æ |
Storage/Shipment |
-40¡«+70¡æ |
Isolation Intensity |
IEC1131 |

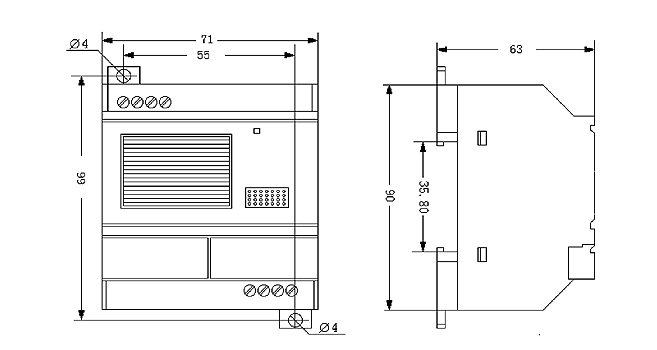

Dimensions |
90*126*63 (Unit: mm) |
Fixation |
Top hat rail Din TS 35 or screw fixing 2XM3 (diameter of pitch circle 4.00mm) |
|
| |
|
| |
 |
| |
|
| |

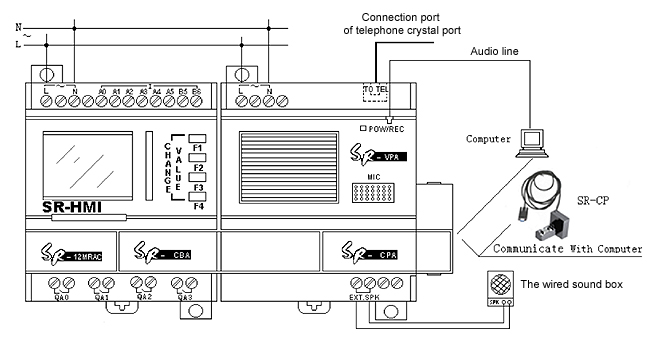

1¡ª Connection interface between voice module and SR machine |
| |
2¡ª Connection interface between voice module and communication cable |
| |
3¡ª MIC (the recording port when off-line recording or recording via the machine panel) |
| |
4¡ª SPK (the internal speaker broadcast interface of the voice module) |
| 5¡ª The frequency input port when recording online. (Connected with the frequency output of the PC.) |
| 6¡ª Connection port of telephone crystal port (Connected with telephone wire directly.) |
| 7¡ª Power and recording indicator of the voice module (When the voice module is working, the indicator is |
| green. When the voice module is recording, the indicator is red. When recording, please wait |
| until the indicator is on. When the indicator is off, please stop recording. Otherwise the |
| message cannot be recorded. |
| 8¡ª
Power (AC or DC) (AC 110£220V) (DC12V£24V) |
| 9¡ª
Frequency output port of the voice module (Connected with the wired sound box). |
| |
 |
| |
|
| |
|
| |
Notes: |
| 1.Power input: AC type: AC 110V¡«220V, DC type: DC 12V¡«24V. |

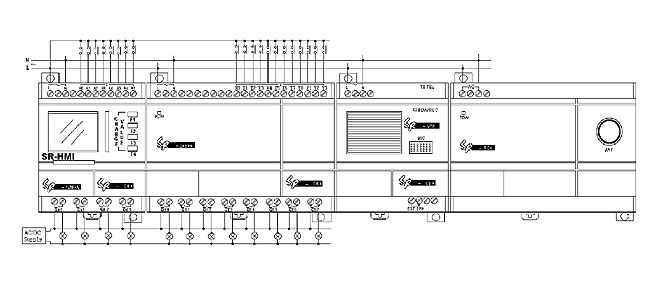

| 2.The voice module can be connected with remote module, to be wirelessly controlled. Or work together with
expansion |
| module. |
| 3.AC type machines must be connected with AC voice module, expansion module and remote module,and DC type |
| machines must be connected with the DC voice module, expansion module and remote module.
|
| 4. When programming, the related remote module must be selected to the hardware configuration,thus the |
| telephone voice module will be able to be operated. |
