The remote control module can be divided into SR-RCA AC type and SR-RCDDC type. It can perform the |
| |
|
wireless control over SR, and the control over the voice module and input/output function. This function
can be |
| |
used in some special fields, such as poisonous and harmful fields where SR cannot be control directly. Thus |
| |
|
the SR can be wirelessly controlled in the working room. |
| |
¡ø |
Remote input is to perform the control over the state of the input by the remoter; actually the input
points have |
| |
|
been expanded. There are six input points total, which are Y1, Y2, Y3, Y4, Y5, and Y6. The remote receiving |
| |
|
module can control the state of the remote input points of your SR by the remoter within 70 meters. |
| |
¡ø |
The remote receiving module can be equipped with extended antenna (SR-ENAT), which makes the signals |
| |
|
can be received and transmitted even in some shielded fields. |
| |
¡ø |
SR wireless control module unleashes your intelligence span, and makes your control freer and more |
| |
convenient. |
| |
 |
| |
Remote receiving module
Item |
Parameter |
Power Consumption |
1.5W |
Operation Frequency |
VHF£¨310¡«340MHz£© |
| ¡¡¡¡Environment Temperature |
Operation Temperature |
0¡æ¡«55¡æ |
Storage/Shipment |
-40¡«+70¡æ |
Isolation Intensity |
IEC1131 |
Dimensions |
90*126*63 (Unit: mm) |
Fixation |
Top hat rail DIN TS 35 or screw fixing2 x M3 (diameter of pitch circle 4,0mm) |
Remote control distance |
¡Ü70M |
Technical Data: (Remote Transmitter)
Item |
Parameter |
Power Consumption |
40mW |
Operation Frequency |
VHF£¨310¡«340MHz£© UHF£¨415¡«460MHz£© |
Operation Voltage |
DC 3V (two units of AA) |
Transmitting Power |
3dbm |
|
| |
|
| |
 |
| |
|
| |

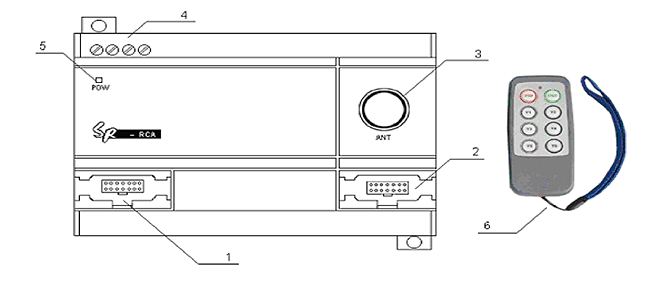

1. Connection interface with machine (to connect machine, voice module) |
| |
2. Connection interface with PC communication and lower machine |
| |
3. Remote receiving antenna |
| |
4. Power input of the remote module (AC or DC) (AC110V-220V) (DC 12V-24V) |
| |
5. Power indicator |
| |
6. SR-TC remote transmitter |
| |
|
 |
| |
1.The remoter and the receiving module have a strict partnering relationship, and cannot be using mixed.
The remoter |
| |
cannot even work with other receiving modules with the same frequency, for they have different address codes. The code |
| |
was preset in the manufacturing process. |
| |
2.The transmitter uses two units of "AA" battery. |
| |
3.After the machine was restarted or shutdown, please press the START key of SR-TC first before
operation. After the |
| |
pressing START key, the indicators of Y1~Y6 will become green, which shows the transmitteris sending out signals. If |
| |
indicators are red, it means the transmitter is not sending out signals and the remote receiving module cannot be |
| |
controlled. Press STOP key will stop the transmitter from sendingout signals, the indicators will stay red unless the |
| |
START key is pressed again. |
| |
|
 |
| |

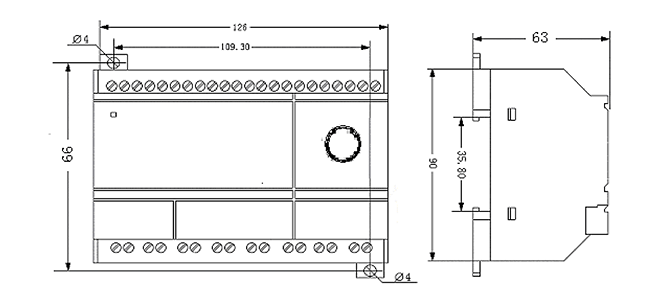

Install by standard 35mm DIN top-hat rail or screw (diameter of pitch circle 4,0mm)

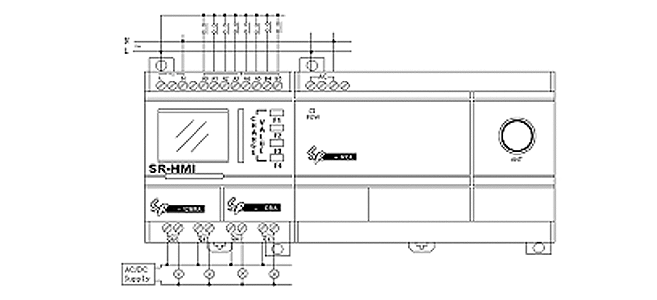

Wiring with the SR host:

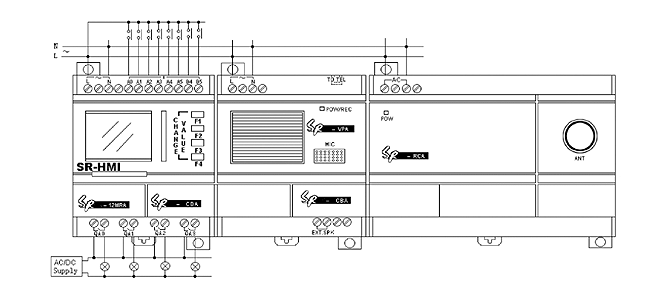

Wiring between the remote module and SR host, voice module:
|
| |
|
| |
Caution: |
| 1.Input power: AC type: AC 110V¡«240V, DC type: DC 12V¡«24V |
| 2.The remote module can be connected with the voice module to wirelessly control it, or work together
with expansion |
| module. |
| 3.AC type machines must be connected with AC voice module, expansion module and remote module, and DC
type |
| machines must be connected with the DC voice module, expansion module and remote module. |
| 4.The remote module must be selected in the system while programming, so that the operation of the remote
module |
| can be performed. |
