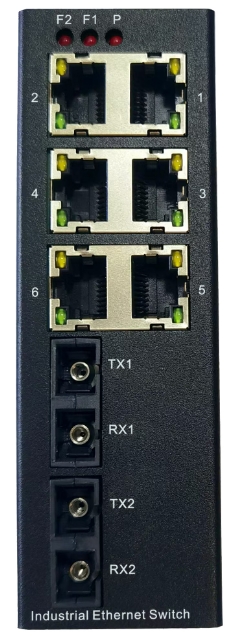

Industrial ethernet switchAR-408A-MM-SC

Features:

8-port embedded 10/100PHY switch controller supports 6 100Base electrical ports and 2 100Base optical interfaces (SC/ST interfaces)

Broadcast storm protection function, MDI/MDI-X adaptive function
Industrial low power consumption design, transmission rate 100Mbps

12- 36V power supply

power consumption 0.95w at full load operation
supplysupport 1k MAC address

Hardwarel Parameters
interface
optical interfaces:100BaseFX interface(SC/ST interfaces)
RJ45 port:10/100BaseT(X)Automatically detects£¬all half-dozen double workers£¬MDI/MDI-X adaptive function
installation method
Track installation
shell
Metal casing
size
40*95*125mm
power supply
DC12-36V double redundancy
Technical Parameters
Fiber cable type
100BaseFX

multimode
single mode(40km)
single mode(80km)
typical distance
5km
40km
80km
wavelength
typical values (nm)
1300
1310
1550
TX wavelength range(nm)
1260to1360
1280to1340
1530to1570
RX wavelength range (nm)
1100to1600
1100to1600
1100to1600
optical power
TXpower range (dBm)
-10to-20
0to-5
0to-5
RX range of sensitivity (dBm)
-3to-32
-3to-34
-3to-34
link budget(dB)
12
29
29
discrete loss(nm)
3
1
1

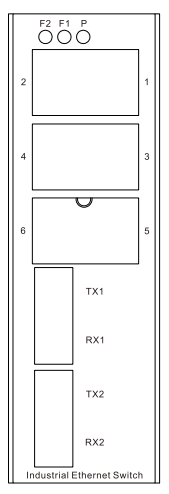

Dimensions



Type

Dimensions(mm)

Industrial ethernet switch

40*95*125
