¡ø |

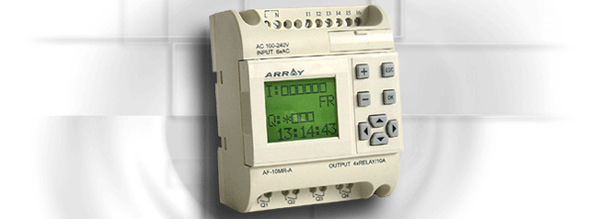

This model is an AC power supply, with digital input, 6 points AC input, 4 points relay output |
| |
¡ø |
Exquisite and compact design |
| |
¡ø |
Multi-functional, easy operating, convenient, easy learning |
| |
 |
| |
¡ø |
Operation temperature£º £º-20¡æ-70¡æ |
¡ø |
Timers £º127 |
¡ø |
Storage/Transportation -40¡æ-70¡æ |
¡ø |
Counters £º127 |
| |
¡ø |
Protection£ºIP20 |
¡ø |
Function blocks : 127 |
| |
¡ø |
Interference Regulation: EN55011(B Class) |
¡ø |
RTC time intervals£º127 |
| |
¡ø |
RTC accuracy: MAX ¡À5S/day |
¡ø |
Storage capacity£º64K |
| |
¡ø |
Certificate£ºCE |
¡ø |
Insulation Intensity: IEC1131 |
| |
¡ø |
Installation: Use a standard DIN rail or screw for installation |
¡ø |

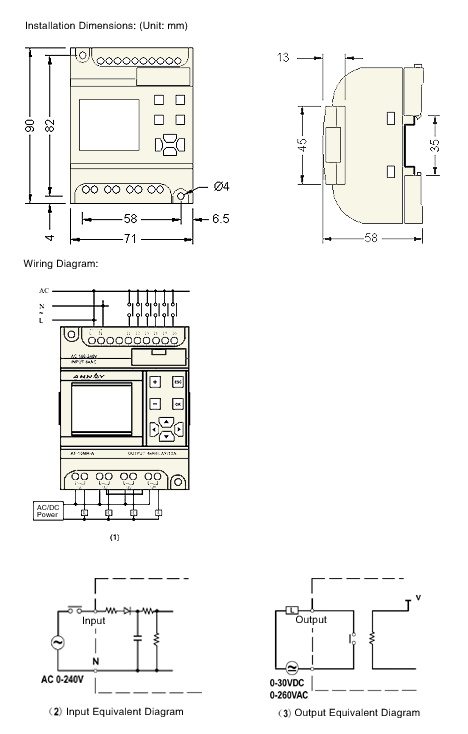

Dimensions£º90*71*58£¨Unit£ºmm£© |
¡ø |
Power supply |
| |
|
Rated voltage£ºAC100-240V |
Main voltage operation range£ºAC85-265V |
| |
|
AC220V consumption£º 3W¡¡¡¡ |
Allowable main frequency£º47-63Hz |
¡ø |
Digital input |
|
Signal 0£ºAC 0-40V |
Input current£º<0.1mA |
|
Signal 1£ºAC 80-240V |
Input current£º<0.2mA |
¡ø |
Digital output |
| |
Output type: Relay output¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ |
Wiring insulation: Yes |
| |
Points per set£º1¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ |
Continuous current max value£ºMAX 10A |
¡ø |
Switch frequency |
|
| |
Mechanism£º 10Hz¡¡ |
Resistor load£º 2Hz Inductive load£º 0.5Hz |
 |
|
| |
|
|
|
| |
|
|
|
