This model is a DC power supply, with digital input, 12 point DC input, 8 point transistor output
|
| |
¡ø |
Exquisite and compact design |
| |
¡ø |
Multi-functional, easy operating, convenient, easy learning |
| |
 |
| |
¡ø |
Operation temperature£º £º-20¡æ-70¡æ |
¡ø |
Timers £º127 |
¡ø |
Storage/Transportation -40¡æ-70¡æ |
¡ø |
Counters £º127 |
| |
¡ø |
Protection£ºIP20 |
¡ø |
Function blocks : 127 |
| |
¡ø |
Interference Regulation: EN55011(B Class) |
¡ø |
RTC time intervals£º127 |
| |
¡ø |
RTC accuracy: MAX ¡À5S/day |
¡ø |
Storage capacity£º64K |
| |
¡ø |
Certificate£ºCE |
¡ø |
Insulation Intensity: IEC1131 |
| |
¡ø |
Installation: Use a standard DIN rail or screw for installation |
¡ø |

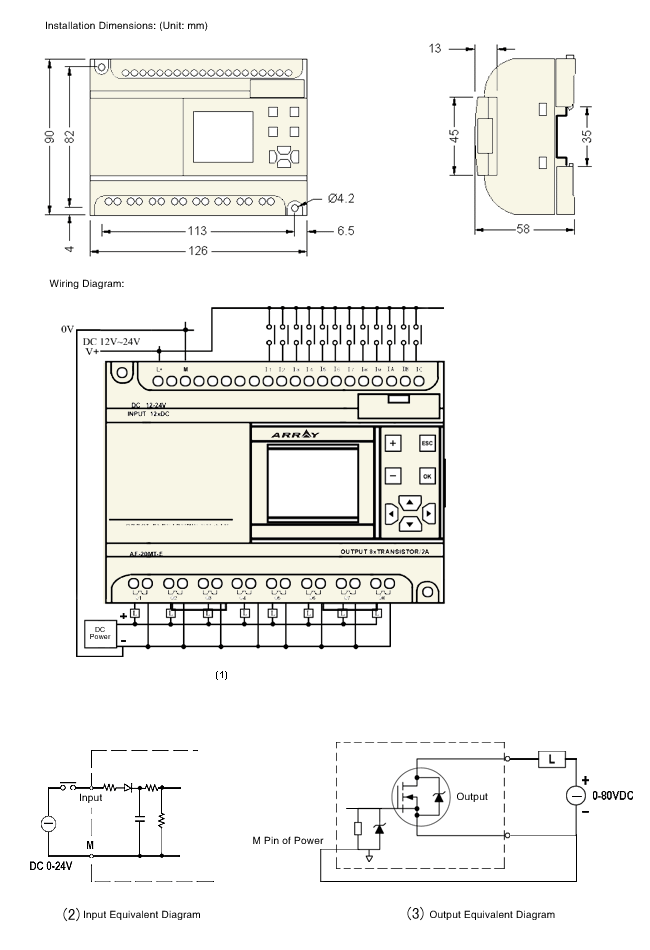

Dimensions£º90*126*58£¨Unit£ºmm £© |
¡ø |
Power supply |
| |
|
Rated voltage£ºDC12/24V |
Main voltage operation range£ºDC10-28V |
| |
|
DC24V consumption£º Typical 80mA |
(Output full-load)£ºTypical 2W |
¡ø |
Digital input |
|
Signal 0£ºDC 0-5V |
Input current£º<0.5mA |
|
Signal 1£ºDC 10-24V |
Input current£º<1mA |
¡ø |
Digital output |
|
| |
Output type: Transistor output £¨equivalent NPN£© |
Output voltage£º¡ÜDC80V |
| |
Output current: MAX 2A |
|
 |
|
| |
|
|
|
| |
|
|
|
