Industrial Communication

Overview

◆RS485 Interface

◆Operating Temperatures : -20 ℃~ +75 ℃

◆Isolation voltage:5000VDC

◆Dual watchdog timer

◆Protocol : Modbus-RTU / Modbus-ASCII

◆LED Indicator

◆Surge,EFT and ESD protection

Technical specitifcations

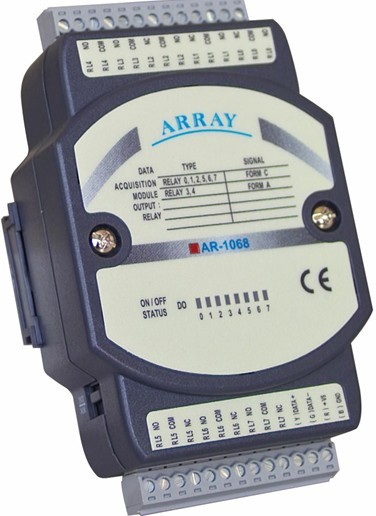

Type	A 1057	A1058	A1068	A1069	A1051	A1055	A1055S	A1060
Ouput	12	12	8	8	--	8	8	4
Input	--				16	8	8	8
Power Consumption	0.96W @24VDC	0.96W @24VDC	1.68W @24VDC	2.88W @24VDC	1.66W @24VDC	1.28W @24VDC	1.28W @24VDC	2.26W @24VDC
Input Power	10-30VDC
Output Type	Souce	Sink	Relay	Power Relay	--	sink	souce	Power Relay
Input Type	--				Isolated Digital
Output rating（max）	10-35VDC/1A	40VDC/200MA	120VAC/0.5A 30VDC/1A	250VAC/5A 30VDC/1A	--	40VDC/200MA	10-35VDC/1A	250VAC/5A 30VDC/1A
Input rating(Isolation)					-logic level0:+1V max; -logic level1:+3.5~30v
Isolation Voltage	5000VDC
LED	YES
Modbus support	Modbus RTU+ Modbus ASCII
Watchdog timer	System m & Comm.
