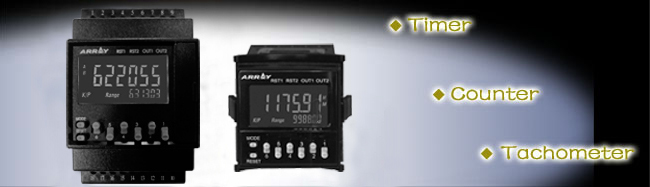

¡øHighly visible display with backlit negative transmissive LCD
|
¡øConform to the key design of ergonomics
|
¡øFive Key Protection Modes:KP-1~KP-5¡¡
|
¡ø EEPROM (overwrites:100,000 times min.) that can store data for 10 years min.¡¡ |
¡øNPN/PNP switchable DC-voltage input
|
¡ø12VDC external supply power can drive the external optical sensors,such as encoder, infrared switches etc..
|
¡øApplied to connect PC/HMI |
![](images/sh300e01.jpg) |

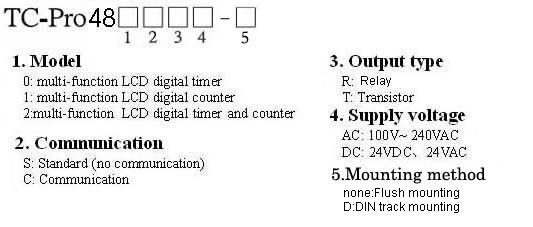

Type |
TC-Pro480 |
TC-Pro481 |
TC-Pro482 |
Classification |
Digital Timer |
Digital Counter /Tachometer |
Digital Timer/Counter /Tachometer |
Supported configurations
|
Timer, Dual Timer, 2-Stage Timer
|
1-stage counter, 2-stage counter, total counter, batch counter, dual counter, and tachometer (selectable) |
Timer, Dual Timer, 2-Stage Timer,1-stage counter, 2-stage counter, total counter, batch counter, dual counter, and tachometer (selectable) |
Rated supply voltage
|
100~240VAC(50/60HZ), 24VAC(50/60HZ), 12~24VDC(
permissible ripple
£º20£¥(p-p)
max.
) |
Operating voltage range
|
85£¥~110£¥Rated Supply Voltage
(12~24VDC£º 90£¥~110£¥) |
Power consumption
|
Approx.
6.2VA at 264VAC, Approx. 5.1VA at 26.4VAC, Approx. 2.4W at 12VDC |

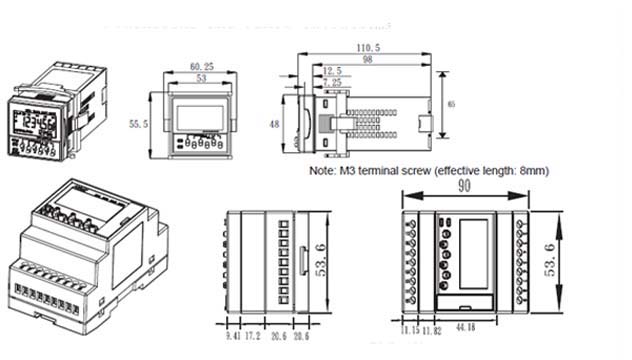

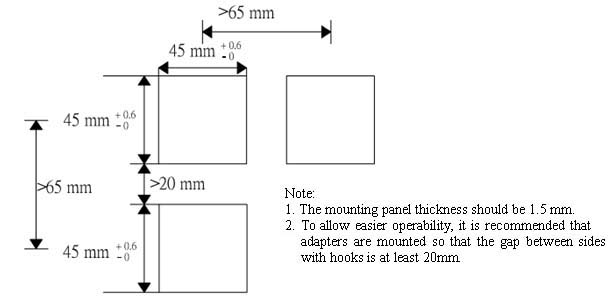

Mounting method
|
Flush mounting and DIN mounting |
External connections
|
Screw terminals |
Input signals
|
CP1, CP2, Reset 1 |
CP1, CP2, Reset 1, Reset 2 |
CP1, CP2, Reset 1, Reset 2 |
Max. counter speed
|
None |
30Hz or 5KHz (10KHz for Tachometer) |
30Hz or 5KHz (10KHz for Tachometer) |
Timer mode
|
Elapsed time (UP), Remaining time (down) (selectable) |
None |
Elapsed time (UP), Remaining time (down) (selectable) |
Input method
|
No-voltage input : ON
impedance
: 1k¦¸
max.
(
leakage current
£º5~20 mA
when
0¦¸) ON
residual voltage
:3V
max.
OFF
impedance
:100k¦¸
min. |
Voltage Input :
High(logic) level
: 4.5~30 VDC
Low(logic) level
:0~2 VDC(
Input resistance: approx.
4.7 k¦¸) |
|
Output method
|
Relay/transistor output |
Control output
|
SPDT contact output: 5A at 250 VAC, resistive load(cos§¶=1) |
Minimum applied load: 10 mA at 5 VDC¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ |
Transistor output: NPN open collector, max. 100mA at 30 VDC |
Residual voltage :
1.5 VDC max.(approx. 1V) |
Output category according to EN60947-5-1 for timers with Contact outputs |
(AC-15; 250V 3A / AC-13; 250V 5A / DC-13; 30V 0.5A) |
Output category according to EN60947-5-2 for timers with Transistor outputs (DC-13; 30V 100 mA) |
NEMA B300 Pilot Duty, 1/4 HP 5-A resistive load at 120 VAC, 1/3 HP 5-A resistive load at 240 VAC |
|
Key protection
|
Yes |
Life expectancy
|
Mechanical
: 10,000,000
operations min. |
Electrical
: 100,000
operations min.(5 A at 250 VAC£¬resistance load) |
|
Weight
|
Approx.
168g |
|
![](images/tc5e.jpg) |
¡ñ
|
A variety of alternative communication format |
|
|
¡¡ |
Communication rate: 1200¡«57600bps |
|
Date Bit: 7/8bit |
|
Parity check: N/0/E |
¡¡ |
Stop bit: 1/2bit |
¡ñ |
Free PC software TCSOFT |
¡¡ |
Quick setting and real time monitoring |
¡ñ |
Support MODBUS protocol |
¡¡ |
Connect all kinds of HMI/Text Display/OPC/Self-made software |
¡ñ |

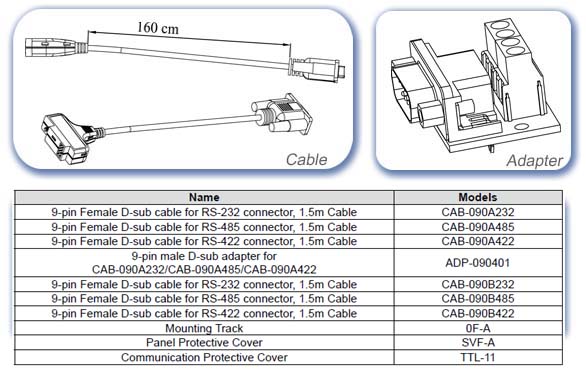

Support RS-232/485/422 communication interface mode |
